Ovalama Kılavuz HSS-E-PM / Açık-Kör Delik / ISO 1X (4HX) / TiCN
P M K N S H
● ● ● ● ● ●
Form İkonu Material Groups İkonu Coating İkonu Tolerance İkonu Cooling İkonu Cutting Direction İkonu Tool Material İkonu Tool Type İkonu Through İkonu Blind İkonu

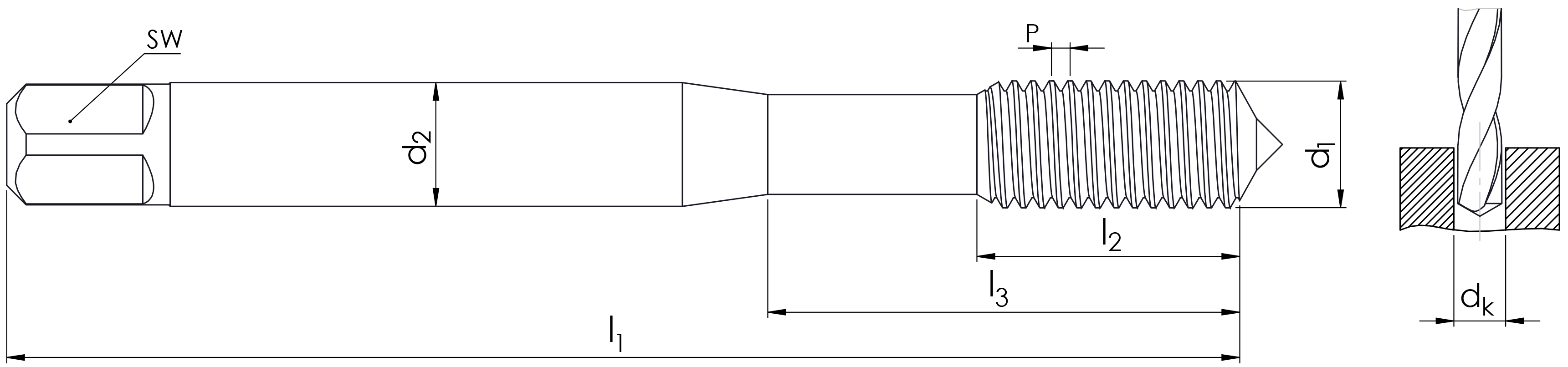

d1 Kare Genişliği (SW) Şaft Çapı (d2) Tam Uzunluk (L1) Diş Uzunluğu (L2) Kanal Uzunluğu Diş Adımı (P) Delik Çapı Standart
M04x0.50 2,10mm 2,80mm 63,00mm 8,00mm N/A 0,50mm 3,800mm DIN 374
M05x0.50 2,70mm 3,50mm 70,00mm 10,00mm N/A 0,50mm 4,800mm DIN 374
M06x0.50 3,40mm 4,50mm 80,00mm 13,00mm N/A 0,50mm 5,750mm DIN 374
M06x0.75 3,40mm 4,50mm 80,00mm 13,00mm N/A 0,75mm 5,650mm DIN 374
M08x0.75 4,90mm 6,00mm 80,00mm 14,00mm N/A 0,75mm 7,650mm DIN 374
M08x1.00 4,9mm 6,0mm 90,00mm 17,00mm N/A 1,00mm 7,550mm DIN 374
M10x0.75 5,50mm 7,00mm 90,00mm 16,00mm N/A 0,75mm 9,650mm DIN 374
M10x1.00 5,5mm 7,0mm 90,00mm 16,00mm N/A 1,00mm 9,550mm DIN 374
M10x1.25 5,50mm 7,00mm 100,00mm 20,00mm N/A 1,25mm 9,400mm DIN 374
M12x1.00 7,00mm 9,0mm 100,00mm 20,00mm N/A 1,00mm 11,550mm DIN 374
M12x1.25 7,00mm 9,00mm 100,00mm 20,00mm N/A 1,25mm 11,400mm DIN 374
M12x1.50 7,00mm 9,0mm 100,00mm 20,00mm N/A 1,50mm 11,300mm DIN 374
M14x1.00 9,00mm 11,0mm 100,00mm 20,00mm N/A 1,00mm 13,550mm DIN 374
M14x1.25 9,00mm 11,00mm 100,00mm 20,00mm N/A 1,25mm 13,400mm DIN 374
M14x1.50 9,00mm 11,0mm 100,00mm 20,00mm N/A 1,50mm 13,300mm DIN 374
M16x1.00 9,00mm 12,0mm 100,00mm 22,00mm N/A 1,00mm 15,550mm DIN 374
M16x1.50 9,00mm 12,0mm 100,00mm 22,00mm N/A 1,50mm 15,300mm DIN 374
M18x1.00 11,00mm 14,0mm 110,00mm 25,00mm N/A 1,00mm 17,550mm DIN 374
M18x1.50 11,00mm 14,0mm 110,00mm 25,00mm N/A 1,50mm 17,300mm DIN 374
M18x2.00 11,00mm 14,00mm 125,00mm 30,00mm N/A 2,00mm 17,100mm DIN 374
M20x1.00 12,00mm 16,0mm 125,00mm 25,00mm N/A 1,00mm 19,550mm DIN 374
M20x1.50 12,00mm 16,0mm 125,00mm 25,00mm N/A 1,50mm 19,300mm DIN 374
M22x1.50 14,50mm 18,0mm 125,00mm 25,00mm N/A 1,50mm 21,300mm DIN 374
M22x2.00 14,50mm 18,00mm 140,00mm 32,00mm N/A 2,00mm 21,100mm DIN 374
M24x1.00 14,50mm 18,00mm 140,00mm 28,00mm N/A 1,00mm 23,550mm DIN 374
M24x1.50 14,50mm 18,0mm 140,00mm 28,00mm N/A 1,50mm 23,300mm DIN 374
M24x2.00 14,50mm 18,00mm 140,00mm 28,00mm N/A 2,00mm 23,550mm DIN 374
