Makine Kılavuzu HSS-E / Kör Delik / 6HX / TiN
P M K N S H
● ● ● ● ● ●
Form İkonu Material Groups İkonu Coating İkonu Tolerance İkonu Cooling İkonu Cutting Direction İkonu Tool Material İkonu Tool Type İkonu Hole Type İkonu

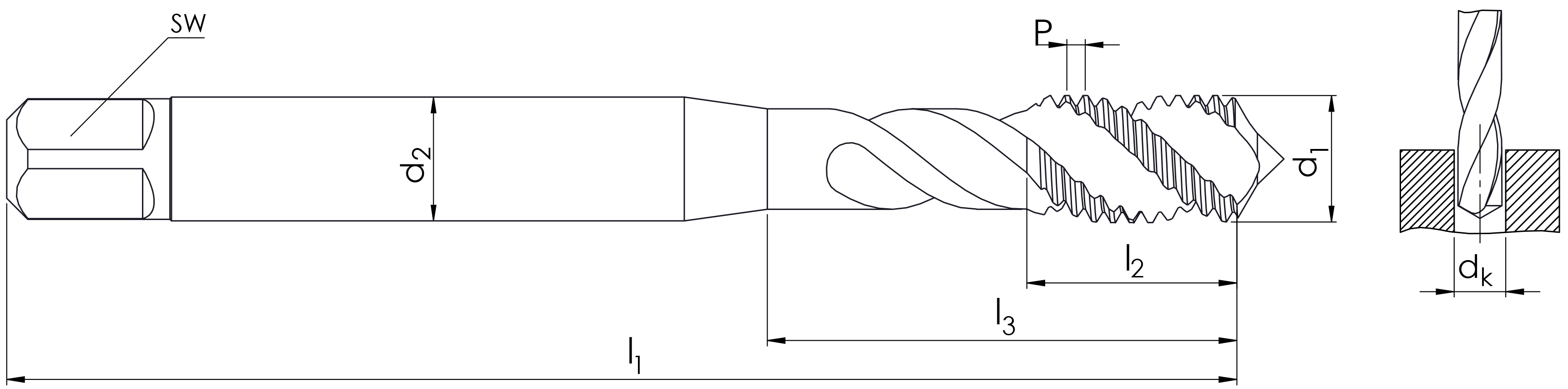

d1 Kare Genişliği (SW) Şaft Çapı (d2) Tam Uzunluk (L1) Diş Uzunluğu (L2) Kanal Uzunluğu Diş Adımı (P) Delik Çapı Standart
M04x0.50 2,10mm 2,80mm 63,00mm 5,00mm 17,00mm 0,50mm 3,50mm DIN 374
M05x0.50 2,70mm 3,50mm 70,00mm 5,00mm 21,00mm 0,50mm 4,50mm DIN 374
M06x0.50 3,40mm 4,50mm 80,00mm 5,00mm 26,00mm 0,50mm 5,50mm DIN 374
M06x0.75 3,40mm 4,50mm 80,00mm 8,00mm 26,00mm 0,75mm 5,20mm DIN 374
M08x0.75 4,90mm 6,00mm 80,00mm 8,00mm 26,00mm 0,75mm 7,20mm DIN 374
M08x1.00 4,90mm 6,00mm 90,00mm 11,00mm 31,00mm 1,00mm 7,00mm DIN 374
M10x0.75 5,50mm 7,00mm 90,00mm 11,00mm 31,00mm 0,75mm 9,20mm DIN 374
M10x1.00 5,50mm 7,00mm 90,00mm 11,00mm 31,00mm 1,00mm 9,00mm DIN 374
M10x1.25 5,50mm 7,00mm 100,00mm 14,00mm 35,00mm 1,25mm 8,80mm DIN 374
M12x1.00 7,00mm 9,00mm 100,00mm 11,00mm 36,00mm 1,00mm 11,00mm DIN 374
M12x1.25 7,00mm 9,00mm 100,00mm 15,00mm 36,00mm 1,25mm 10,80mm DIN 374
M12x1.50 7,00mm 9,00mm 100,00mm 15,00mm 36,00mm 1,50mm 10,50mm DIN 374
M14x1.00 9,00mm 11,00mm 100,00mm 11,00mm 36,00mm 1,00mm 13,00mm DIN 374
M14x1.25 9,00mm 11,00mm 100,00mm 15,00mm 36,00mm 1,25mm 12,80mm DIN 374
M14x1.50 9,00mm 11,00mm 100,00mm 15,00mm 36,00mm 1,50mm 12,50mm DIN 374
M16x1.00 9,00mm 12,00mm 100,00mm 11,00mm 40,00mm 1,00mm 15,00mm DIN 374
M16x1.50 9,00mm 12,00mm 100,00mm 15,00mm 40,00mm 1,50mm 14,50mm DIN 374
M18x1.00 11,00mm 14,00mm 110,00mm 12,00mm 40,00mm 1,00mm 17,00mm DIN 374
M18x1.50 11,00mm 14,00mm 110,00mm 16,00mm 40,00mm 1,50mm 16,50mm DIN 374
M18x2.00 11,00mm 14,00mm 125,00mm 20,00mm 54,00mm 2,00mm 16,00mm DIN 374
M20x1.00 12,00mm 16,00mm 125,00mm 12,00mm 40,00mm 1,00mm 19,00mm DIN 374
M20x1.50 12,00mm 16,00mm 125,00mm 16,00mm 40,00mm 1,50mm 18,50mm DIN 374
M22x1.50 14,50mm 18,00mm 125,00mm 16,00mm 40,00mm 1,50mm 20,50mm DIN 374
M22x2.00 14,50mm 18,00mm 140,00mm 22,00mm 58,00mm 2,00mm 20,00mm DIN 374
M24x1.00 14,50mm 18,00mm 140,00mm 16,00mm 44,00mm 1,50mm 22,50mm DIN 374
M24x1.50 14,50mm 18,00mm 140,00mm 16,00mm 44,00mm 2,00mm 22,00mm DIN 374
M24x2.00 14,50mm 18,00mm 140,00mm 22,00mm 44,00mm 2,00mm 22,00mm DIN 374
