Mci Tool| 75733209

P	M	K	N	S	H
●	●	●	●	●	●

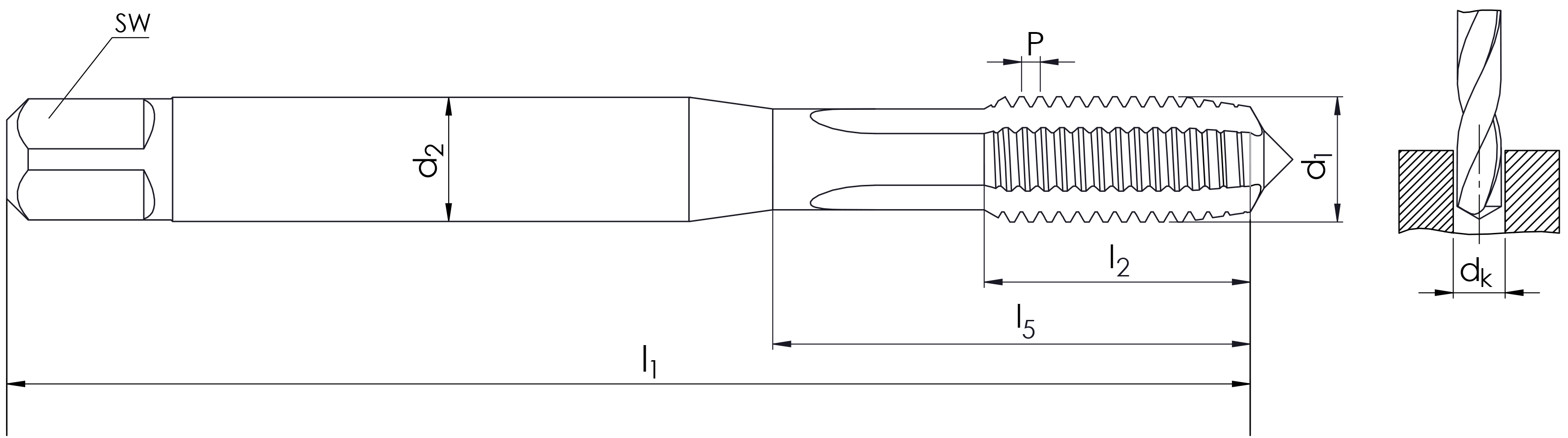

d1	Kare Genişliği (SW)	Şaft Çapı (d2)	Tam Uzunluk (L1)	Diş Uzunluğu (L2)	Kanal Uzunluğu	Diş Adımı (P)	Delik Çapı	Standart
M03	2,70mm	3,50mm	56,00mm	10,00mm	14,00mm	0,50mm	2,50mm	DIN 371
M04	3,40mm	4,50mm	63,00mm	12,00mm	17,00mm	0,70mm	3,30mm	DIN 371
M05	4,90mm	6,00mm	70,00mm	14,00mm	21,00mm	0,80mm	4,20mm	DIN 371
M06	4,90mm	6,00mm	80,00mm	16,00mm	26,00mm	1,00mm	5,00mm	DIN 371
M08	6,20mm	8,00mm	90,00mm	17,00mm	31,00mm	1,25mm	6,80mm	DIN 371
M10	8,00mm	10,00mm	100,00mm	20,00mm	35,00mm	1,50mm	8,50mm	DIN 371
M12	7,00mm	9,00mm	110,00mm	24,00mm	45,00mm	1,75mm	10,20mm	DIN 376
M14	9,00mm	11,00mm	110,00mm	26,00mm	49,00mm	2,00mm	12,00mm	DIN 376
M16	9,00mm	12,00mm	110,00mm	26,00mm	50,00mm	2,00mm	14,00mm	DIN 376
M18	11,00mm	14,00mm	125,00mm	30,00mm	58,00mm	2,50mm	15,50mm	DIN 376
M20	12,00mm	16,00mm	140,00mm	32,00mm	58,00mm	2,50mm	17,50mm	DIN 376
M22	14,50mm	18,00mm	140,00mm	32,00mm	58,00mm	2,50mm	19,50mm	DIN 376
M24	14,50mm	18,00mm	160,00mm	36,00mm	69,00mm	3,00mm	21,00mm	DIN 376

Ürün No: 75733209
