Form İkonu Material Groups İkonu Coating İkonu Tolerance İkonu Cooling İkonu Cutting Direction İkonu Tool Material İkonu Tool Type İkonu Through İkonu Blind İkonu

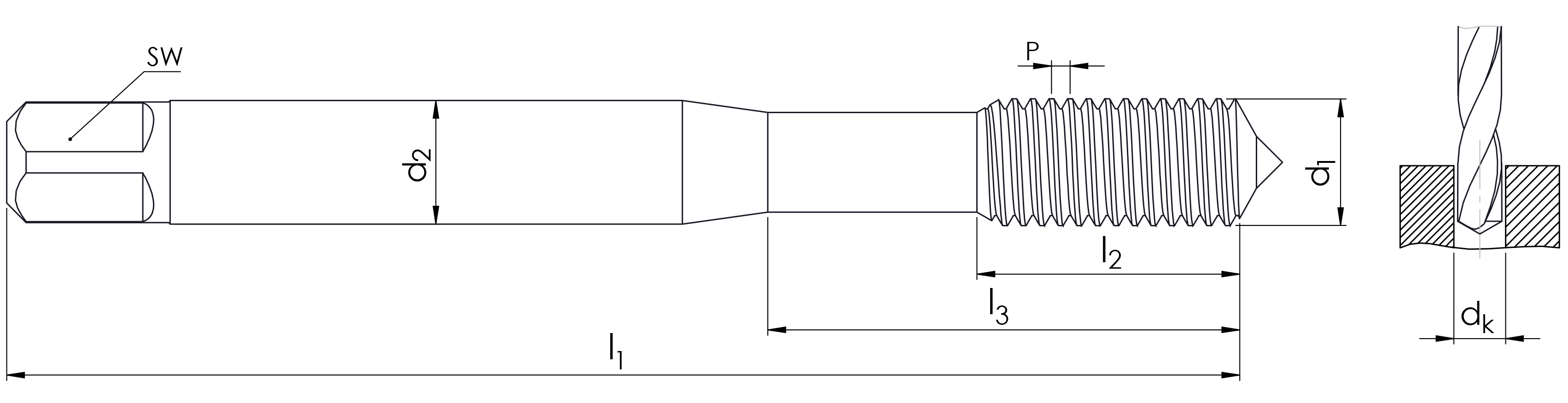

d1 Kare Genişliği (SW) Şaft Çapı (d2) Tam Uzunluk (L1) Diş Uzunluğu (L2) Kanal Uzunluğu Diş Adımı (P) Delik Çapı Standart
M03 2,70mm 3,50mm 56,00mm 10,00mm N/A 0,50mm 2,80mm DIN 371
M03 2,70mm 3,50mm 56,00mm 10,00mm N/A 0,50mm 2,80mm DIN 371
M04 3,40mm 4,50mm 63,00mm 12,00mm N/A 0,70mm 3,70mm DIN 371
M04 3,40mm 4,50mm 63,00mm 12,00mm N/A 0,70mm 3,70mm DIN 371
M05 4,90mm 6,00mm 70,00mm 14,00mm N/A 0,80mm 4,65mm DIN 371
M05 4,90mm 6,00mm 70,00mm 14,00mm N/A 0,80mm 4,65mm DIN 371
M06 4,90mm 6,00mm 80,00mm 16,00mm N/A 1,00mm 5,55mm DIN 371
M06 4,90mm 6,00mm 80,00mm 16,00mm N/A 1,00mm 5,55mm DIN 371
M08 6,20mm 8,00mm 90,00mm 17,00mm N/A 1,25mm 7,40mm DIN 371
M08 6,20mm 8,00mm 90,00mm 17,00mm N/A 1,25mm 7,40mm DIN 371
M10 8,00mm 10,00mm 100,00mm 20,00mm N/A 1,50mm 9,30mm DIN 371
M10 8,00mm 10,00mm 100,00mm 20,00mm N/A 1,50mm 9,30mm DIN 371
M10 8,00mm 10,00mm 100,00mm 20,00mm N/A 1,50mm 9,30mm DIN 371
M12 7,00mm 9,00mm 110,00mm 24,00mm N/A 1,75mm 11,20mm DIN 376
M12 7,00mm 9,00mm 110,00mm 24,00mm N/A 1,75mm 11,20mm DIN 376
M14 9,00mm 11,0mm 110,00mm 26,00mm N/A 2,00mm 13,10mm DIN 376
M14 9,00mm 11,0mm 110,00mm 26,00mm N/A 2,00mm 13,10mm DIN 376
M16 9,00mm 12,00mm 110,00mm 26,00mm N/A 2,00mm 15,10mm DIN 376
M16 9,00mm 12,00mm 110,00mm 26,00mm N/A 2,00mm 15,10mm DIN 376
M18 11,00mm 14,00mm 125,00mm 30,00mm N/A 2,50mm 16,90mm DIN 376
M18 11,00mm 14,00mm 125,00mm 30,00mm N/A 2,50mm 16,90mm DIN 376
M20 12,00mm 16,00mm 140,00mm 32,00mm N/A 2,50mm 18,90mm DIN 376
M20 12,00mm 16,00mm 140,00mm 32,00mm N/A 2,50mm 18,90mm DIN 376
